10 Pin Lead

Our 10 pin open lead connector can be used to hook up additional peripherals

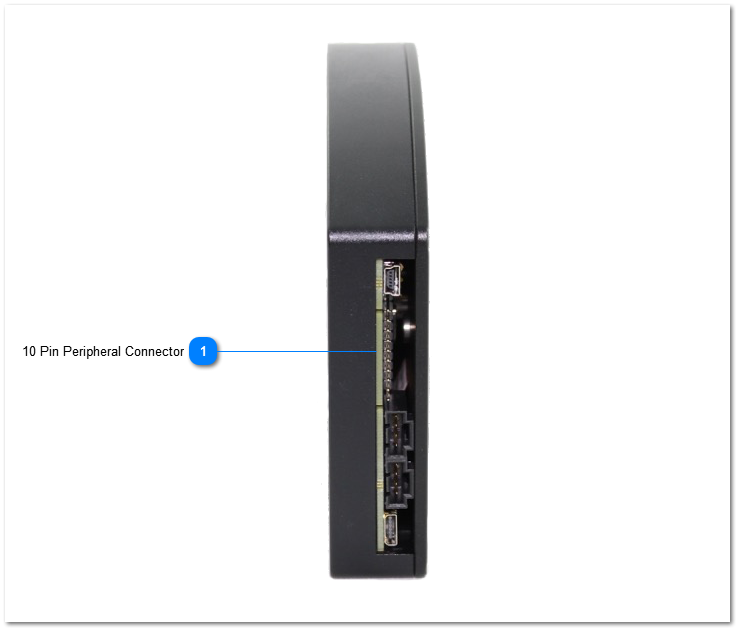

10 Pin Peripheral Connector

1 CAN HIGH

2 CAN LOW

3 INPUT

4 TEST

5 INPUT/ANALOG 1 0-5v

6 INPUT/ANALOG 2 0-5v

7 INPUT/ANALOG 3 0-5v

8 RS232 TX

9 RS232 RX

10 GND
